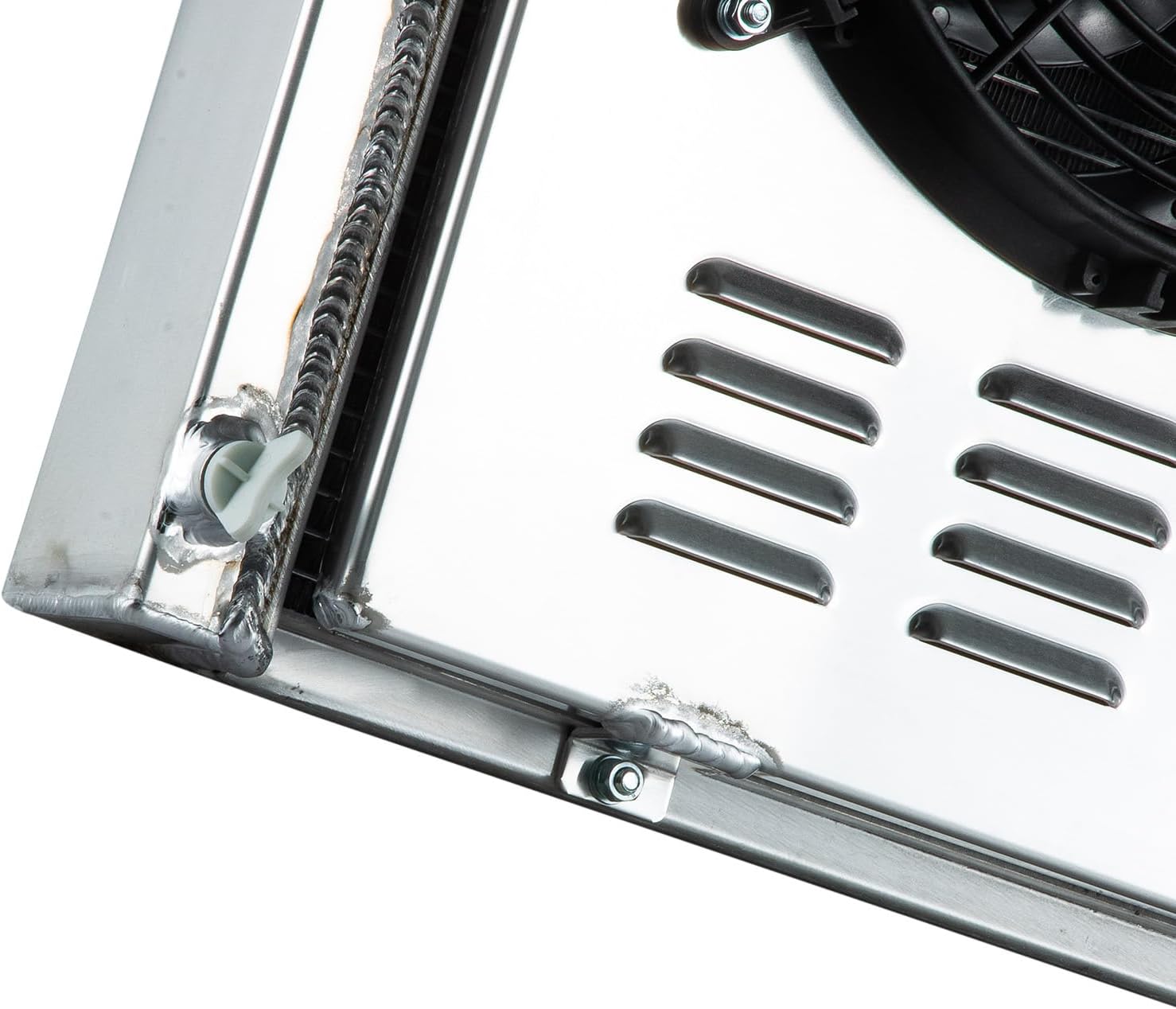

4 Row Core Radiator for 1973-1991 Chevy GMC C/K Series Pickup & Trucks C10 C 20 C30 K10 K20 K30 Multiple V8 Models All Aluminum Radiator + 2 X 12" Fan W/Shroud

Package Include: 1 X4-Row Aluminum Radiator 1 X Aluminum Shroud 2 X 12" Fans (Includes mounting kits) This Radiator Size: High Performance Racing Spec. 4-Row of tubes Core Racing Design Core Size:19" high x 28-1/4" wide Overall Size:20-1/4" high x 33-1/4" wide Upper inlets:1 1/2" located on the driver side Lower outlets:1 1/2" located on the passenger side Transmission Oil Cooler：￠32×215×G1/4（Z） 100% Aluminum Construction (no epoxy). Great Strength & High Cooling Efficiency. Improves Cooling by 35% to 45% Temperature. Placement on Vehicle: Engine Compartment Style: Crossflow Mounting Style: Bolt-On Fan Specification: Diameter : 12'' (Blade to Blade) Voltage: DC 12 Volts Wattage: 80W Fan Thickness: 2.5" Number of Blades: 10 S-Type blades Maximum Fan CFM（Cubic Feet per Minute）: 2150cfm Maximum Fan RPM（Revolution(s) Per Minute）: 2000±10% S-Type Blade pull push design, to make air flow more efficient and bring more cooling Effect Powerful 80 watt motor will keep your engine cool. APPLICATION： For Chevy Blazer 1987-1991 For Chevy C10 1981-1985 For Chevy C1500 1988-1990 For Chevy C20 1981-1985 For Chevy C2500 1988-1990 For Chevy C30 1982-1986 For Chevy C3500 1988-1990 For Chevy K10 1981-1986 For Chevy K20 1981-1986 For Chevy K30 1981-1986 For GMC C1500 1982-1986,1988,1989 For GMC C1500 Suburban 1979-1984 For GMC C2500 1982-1986,1988-1990 For GMC C2500 Suburban 1982-1986 For GMC C3500 1981-1986,1988-1990 For GMC Jimmy 1973-1991 Why Choose Cubauto Radiator? 1. Maximum cooling efficiency 2. High security and performance 3. Excellent aluminum material 4. Stability and durability 5. Drop-in installation 6. High temperature resistance 7. Enhanced protection package

• 【Direct Replacement】4 Row Core AA5052 Aluminum Radiator Shroud fan for Chevy K5 Blazer 5.0L 5.7L V8 1981-1986;for GMC C/K Series Pickup / Suburban 5.0L 5.7L 7.4L V8 1973-1987;for GMC Jimmy 5.0L 5.7L V8 1981-1991;for 1973-1987 Chevy C/K C10 C20 C30 K10 K30 Truck;for Chevy C/K Series Pickup / Suburban 5.0L 5.7L 7.4L V8 1973-1987;for Chevy Blazer 5.0L 5.7L V8 1987-1991
• 【Radiator Size】Core Size:19" high x 28-1/4" wide; Overall Size: 20-1/4" H x 33-1/4" W; Inlet/Outlet:1 1/2" / 1 1/2" . Transmission Oilcooler: 32×215×G1/4（Z）
• 【High Performance】Full AA5052 Aircraft Aluminum craftsmanship radiator & exclusive tube design that dramatically increases cooling efficiency by up to 30%~45%, strong and durable, 100% welded by TIG, No Epoxy. 100% Leak Tested
• 【Reference Number】716,CC716,CU716,RAD716,DPI716,MC716,SBR716,KKS716; Other Part Number: CU844, SPTCU716, 2308, 40385, 0AAS0778, 433716; Interchange Part Number: CU1599, EC716, 1599, B1599, B716, MC716, 1605-37020
• 【Excellent service】If you have any questions, please contact us, Cubauto will do our best to solve it for you and give you the best purchase experience. ONE YEAR WARRANTY, worry-free return or exchange
